Copper Tubes
Copper Tube is one of the components that finds application in aircondition and refrigeration systems. The tube works as a carrier of refrigerant which flows between system components and also to contain the refrigerant from escaping to the atmosphere.
Benefits
Copper is a metal which has highly anti-corrosive properties compared to aluminium. During the cooling process, pipes come in contact with air which causes oxidation within these pipes. Copper can better handle oxidation and corrosion for longer periods, thus giving air conditioners a longer lifespan.
Other Benefits
✤ Bactericidal, fungicidal and algicidal effect
✤ Easy to Install
✤ Low Coefficient of Expansion
✤ Excellent Thermal Conductivity
✤ Low Pressure Loss
✤ High mechanical stability
✤ Oxygen impermeability
✤ Immune to ageing
✤ Aesthetic
✤ Recyclable
TESTING FACILITY
- The testing has been carried out in accordance with IS 10773, JIS H-3300, ASTM B68, B75 and B280, EN, AS/NZS thereby ensuring that the finished product is up to the mark. We have a well equipped laboratory with state of the art testing instruments.
- We strictly follow the following testing process with the help of sophisticated testing equipments to maintain international standards:
Microscopic Examination
Metallurgical test – Grain size testing
Nondestructive testing
Eddy current testing – We ensure that every meter of the tube passes through Eddy Current testing.- Chemical Composition Testing: Spectrometer fed with all programmes for Cu and its alloys.
Mechanical tests
– Tensile Elongation,

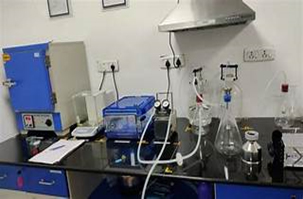

– Hardness testing- Cleanliness test – Contamination tests.
PANCAKE COILS (PCC)
- SIZE – 4.76 mm to 22.22 mm OD; 0.30 mm to 1.5 mm thick (including VRV size)
- APPLICATION : Air conditioner Refrigerator components, connecting kit, repair works, etc.
- FEATURES : RoHS compliant , compatible to refrigerants, easy to use as connecting kit.
STRAIGHT TUBE
- MACHINERY

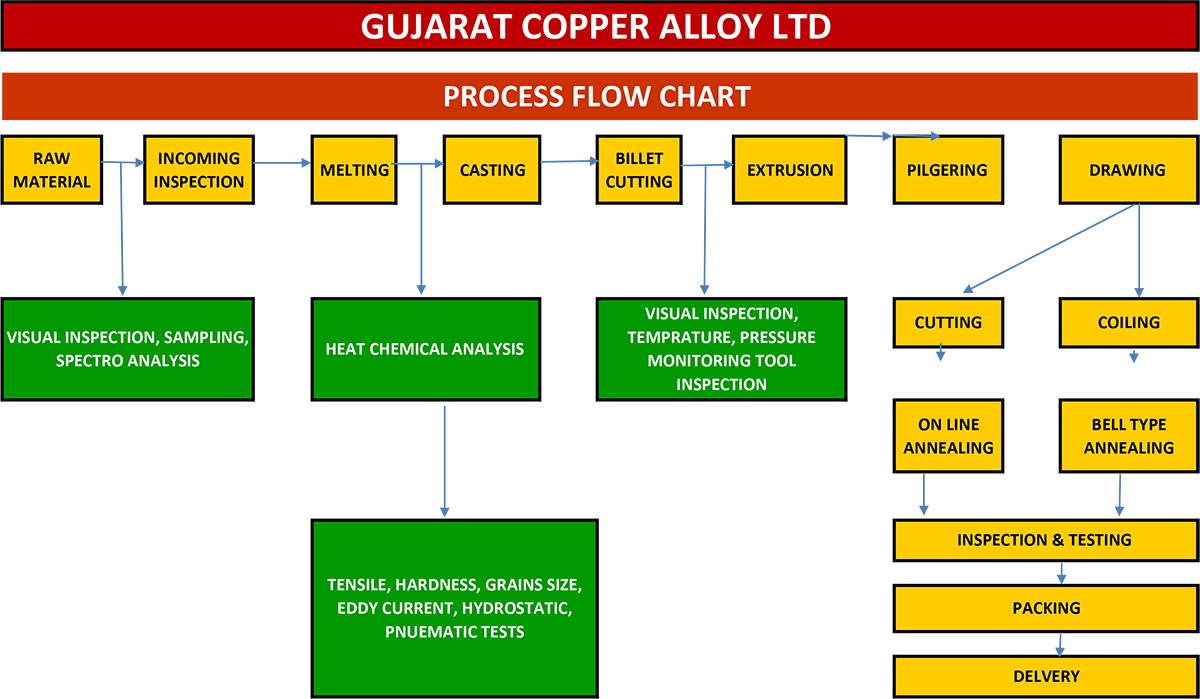

- Pilger Mill + Cascade drawing + Redrawing on draw bench + Spinner drawing + CTL (Cut to Length).
- SIZE – 4.76 mm (3/16”) to 53.9 mm (2-5/8”) OD
Thickness as per requirement.
Standard: IS 10773, JIS H3300; ASTM B68, B75, B88, B280; EN 12735 – Cu-DHP.
- HARDNESS : As per requirement – Hard, Half/ Quarter Hard and Soft.
- APPLICATION – Chillers, VRV/VRF ACR systems, heat exchanger, gasoline, medical gas, solar, plumbing and other general engineering purposes.
- FEATURES : 100 % Eddy Current tested, RoHS compliant, compatible to refrigerants, easy in flaring, forming, laying, bending and installing.
| Material | Copper |
|---|---|
| Type | Straight Copper Tube |
| Outside Diameter | 4.76mm to 100 mm |
| Thickness | 0.4 mm upto 8.0 mm |
| LENGTH | Straight Length : Up to 6.0 Mtr maximum |
| Grade | C12200 – (DHP) De-oxidised high residual phosphorous C12000 (DLP) De-oxidised low residual phosphorous C10200-Oxygen Free C11000 – Electrolytic Tough Pitch Copper |
| Temper | Soft Annealed, light Annealed, Light Drawn, Hard drawn |
| Specification | IS / ASTM/ JIS / BSEN |
| Material | Copper |
|---|---|
| Type | Copper rod / Sections /Profiles |
| Outside Diameter | |
| LENGTH | |
| Grade | C10100 – (OFE) Oxygen Free Electronic C10200 – (OF) Oxygen Free C11000 – (ETP) Electrolytic Tough Pitch |
| Temper | SOFT ANNEALED /LIGHT DRAWN |
| Specification | IS / ASTM/ JIS / BSEN |
| Material | Copper Nickel |
|---|---|
| Type | Plain Copper Nickel Tubes |
| Outside Diameter | 4.76mm to 100 mm |
| Thickness | 0.6 mm to 6MM |
| LENGTH | Straight Length : 13mtr Max. |
| Grade | (90/10) – C70600 / (70/30) – C71500 |
| Temper | Soft Annealed, light Annealed, Light Drawn, Hard drawn |
| Specification | IS / ASTM/ JIS / BSEN |
| Material | Brass |
|---|---|
| Type | Round Straight Tubes |
| Outside Diameter | 4.76 mm TO 100 mm |
| Thickness | 0.6 min TO 8 MM |
| LENGTH | Straight Length : 6mtr Max. |
| Grade | 63/37( C27400), 70/30 ( C 2600 ) Ad brass ( CZ 111 ) |
| Temper | Soft Annealed, light Annealed, Light Drawn, Hard drawn |
| Specification | IS / ASTM/ JIS / BSEN |
| . | BRIGHT ANNEALED PANCAKE COIL 15.24 METER LONG | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OUTER DIAMETER | WALL THICKNESS (MM) | |||||||||||||
| MM | INCH | 0.40 | 0.45 | 0.46 | 0.51 | 0.61 | 0.66 | 0.71 | 0.76 | 0.81 | 0.91 | 1.00 | 1.20 | 1.50 |
| 4.76 | 3/16. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||||||
| 6.35 | 1/4. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 7.94 | 5/16. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 9.52 | 3/8. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| 12.7 | 1/2. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| 15.88 | 5/8. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||
| 19.05 | 3/4. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||||||
| 22 | 7/8. | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ||||||
| MECHANICAL & METALLURGICAL REQUIREMENTS FOR COPPER TUBES | ||||||||
|---|---|---|---|---|---|---|---|---|
| SPECIFICATION | CHEMISTRY | TEMPER | TENSILE | ELONGATION | HARDNESS | GRAIN SIZE | INTERNAL CLEANLINESS | |
| COPPER | PHOSPHORUS | N/MM2 | % Min | |||||
| IS 10773 | 99.85 MIN | 0.015 -0.040 | Light Annealed | 205 | 40 | NA | 0.015-0.035 | 0.038 gm/m2 |
| Soft Annealed | 205 | 25 | NA | 0.035 | ||||
| Light drawn | 250-325 | —– | NA | |||||
| ASTM B68 /B75 | 99.90 MIN | 0.015-0.040 | Light Annealed (O50) | 210 | 40 | NA | 0.040 MAX | 0.038 gm/m2 |
| Soft Annealed (O60) | 210 | 40 | NA | 0.040 Min | ||||
| Light drawn (H 58) | 250 | NA | 30 -60 ( 30 T ) | NA | ||||
| Hard Drwn ( H 80 ) | 310 | NA | 55 MIN ( 30 T ) | NA | ||||
| JIS H 3300 | 99.90 MIN | 0.015-0.040 | Light Annealed ( O50 ) | 205 | 40 | 73 VPN MAX | 0.040 MAX | 0.038 gm/m2 |
| Soft Annealed ( O60 ) | 205 | 40 | 69 VPN MAX | 0.025-0.060 | ||||
| Half Hard | 245-325 | NA | 70-110 VPN | NA | ||||
| Hard | 315 | NA | 100 VPN Min | NA | ||||
| GCAL PACKING STANDARD | ||||||
|---|---|---|---|---|---|---|
| SIZE O.D | Thk | Wt. of packed coil (50Ft)KG | No of coil per box | Weight per Box KG | Manufacturing Standard | |
| Inch | mm | mm | ||||
| GCAL ( Medium Pcc ) | ||||||
| 03/16″ | 4.76 | 0.5 | 0.9 | 22 | 19.8 | IS 10773, ASTM B68 , 280 & JIS H 3300 |
| 01/04″ | 6.35 | 0.61 | 1.5 | 22 | 33 | |
| 05/16″ | 7.94 | 0.57 | 1.8 | 15 | 27 | |
| 03/08″ | 9.52 | 0.66 | 2.5 | 15 | 37.5 | |
| 01/02″ | 12.7 | 0.68 | 3.5 | 10 | 35 | |
| 05/08″ | 15.88 | 0.69 | 4.5 | 8 | 36 | |
| 03/04″ | 19.05 | 0.74 | 5.8 | 6 | 34.8 | |
| 07/08″ | 22.22 | 0.9 | 8.2 | 4 | 32.8 | |
| GCAL (Light Pcc ) | ||||||
| 01/04″ | 6.35 | 0.54 | 1.35 | 22 | 29.7 | IS 10773, ASTM B68 , 280 & JIS H 3300 |
| 03/08″ | 9.52 | 0.58 | 2.2 | 15 | 33 | |
| 01/02″ | 12.7 | 0.62 | 3.2 | 10 | 32 | |
| 05/08″ | 15.88 | 0.65 | 4.2 | 8 | 33.6 | |
| VRF/VRV (Heavey Pcc) | ||||||
| 01/04″ | 6.35 | 0.8 | 1.9 | 15 | 28.5 | IS 10773, ASTM B68 , 280 & JIS H 3300 |
| 03/08″ | 9.52 | 0.8 | 3 | 10 | 30 | |
| 01/02″ | 12.7 | 0.8 | 4 | 8 | 32 | |
| 05/08″ | 15.88 | 1 | 6.3 | 5 | 31.5 | |
| 03/04″ | 19.05 | 1 | 7.7 | 4 | 30.8 | |
| 07/08″ | 22.22 | 1 | 9 | 4 | 36 | |
| VRF/VRV STRAIGHT PIPE | ||||||
| Inch | mm | Thk | Wt. of 10Ft | wt. of pcs/ Bundle | Weight per Bundle (KG) | IS 10773, ASTM B68 , 280 & JIS H 3300 |
| 01/04″ | 6.35 | 0.8 | 0.38 | 100 | 38.01 | |
| 03/08″ | 9.52 | 0.8 | 0.6 | 80 | 47.78 | |
| 01/02″ | 12.7 | 0.8 | 0.82 | 60 | 48.91 | |
| 05/08″ | 15.88 | 1 | 1.27 | 40 | 50.96 | |
| 03/04″ | 19.05 | 0.8 | 1.25 | 35 | 43.75 | |
| 07/08″ | 22.22 | 0.8 | 1.47 | 30 | 44.01 | |
| 1/00″ | 25.4 | 0.88 | 1.89 | 20 | 37.76 | |
| 1-01/08″ | 28.57 | 1 | 2.36 | 18 | 42.49 | |
| 1-01/04″ | 31.57 | 1.1 | 2.97 | 15 | 44.55 | |
| 1-03/08″ | 34.92 | 1.21 | 3.49 | 13 | 45.4 | |
| 1-01/02″ | 38.1 | 1.32 | 4.16 | 10 | 41.57 | |
| 1-05/08″ | 41.28 | 1.43 | 4.88 | 8 | 39.03 | |
| 1-03/04″ | 44.45 | 1.6 | 5.87 | 7 | 41.09 | |
